● quality standard

· Standard 1：《Non-destructive testing - Quality assessment of radiographic film digitizing systems - Part 1: Definition, quantitative measurement of image quality parameters, standard reference film and qualitative control》GB/T26141.1-2010；

《Non-destructive testing - Quality assessment of radiographic film digitizing systems - Part 2: Minimum requirements》GB/T 26141.2-2010 DS级。

· Standard 2： 《Evaluation method of digital system of radiographic film for non-destructive testing of pressure equipment》GB/T 28266-2012 B级

· Standard 3： 《Digital Image Processing and Communication for Non-destructive Testing》GB/T 30821-2014 Diconde standard

● technical index

· Optical density range: 0.5-5.0；

· Digital resolution: 16bit；

· Density contrast sensitivity: 0.01；

· Resolution: 400, 800, custom；

· Geometric distortion: <2%；

· Image relative distortion ratio: < 0.1%, high reduction performance, the lowest resolution acquisition mode can clearly scan the smallest image quality filameter；

· Absolute blackness error: 0.2；

· Image display: negative horizontal display, in line with the evaluation habit；

· Degree of damage caused by scanning machinery to the core data area of physical negatives: 0；

· Performance stability: Support 24*365 working mode；

· Image format: DICONDE format, can be individually/batch converted to jpg, tiff, bmp and other formats.

● Proprietary technology: lossless dynamic feed mechanism

• The soft roller is hollow in the middle to avoid physical contact with the core area of the negative and will not scratch the negative；
• The feed plate is driven by a single roller motor and followed by gravity rolling friction, which does not produce sliding friction；
• The organic resin slide is 1mm above the scanner panel and is suspended to ensure that no slip marks occur in the organic data area of the negative；
• The density of the organic resin slide is less than the density of the negative, which reduces the sliding friction on both sides of the negative；
• Sensor anti-dust design, dust on the image quality is small。

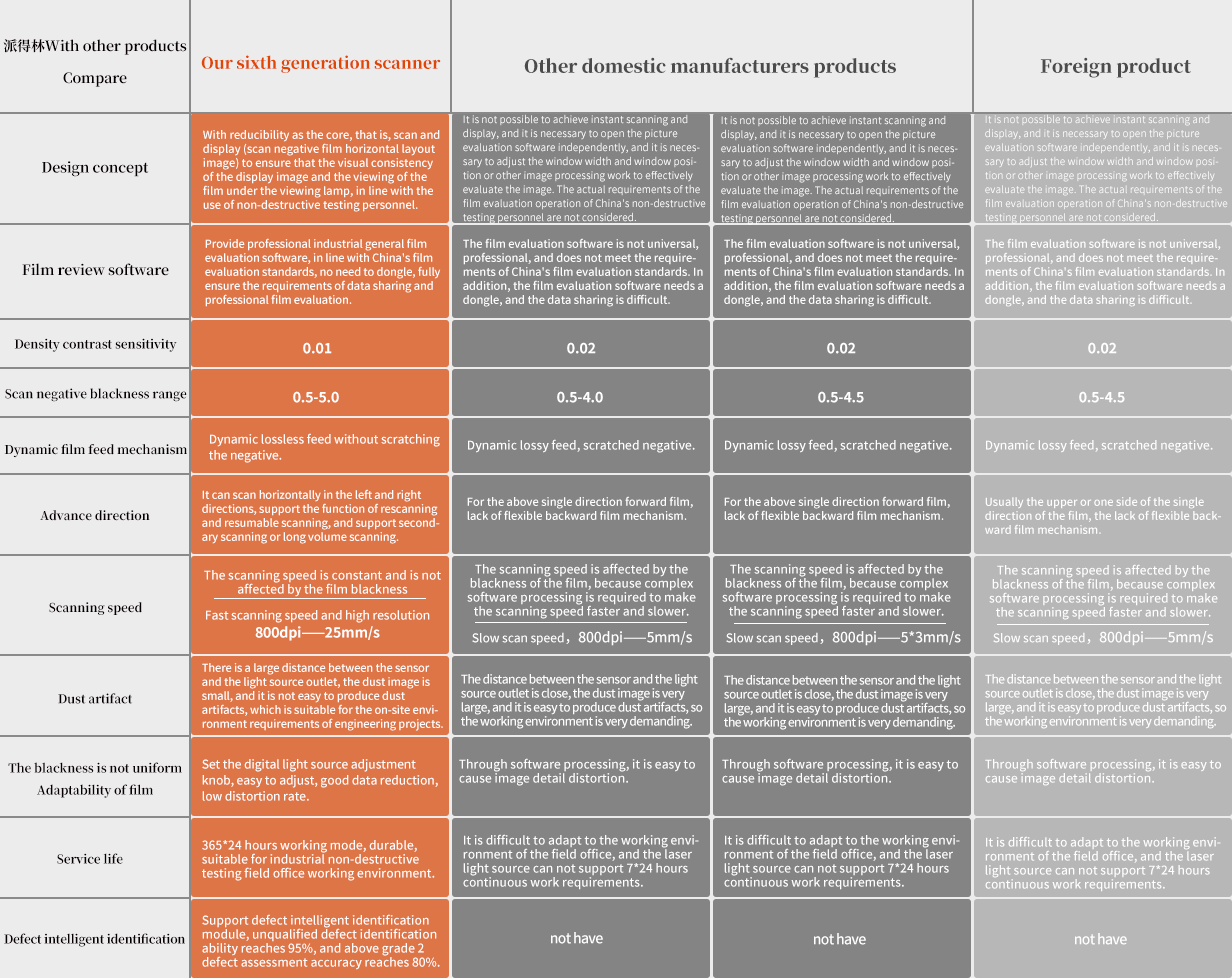

● The sixth generation scanner compared to other products

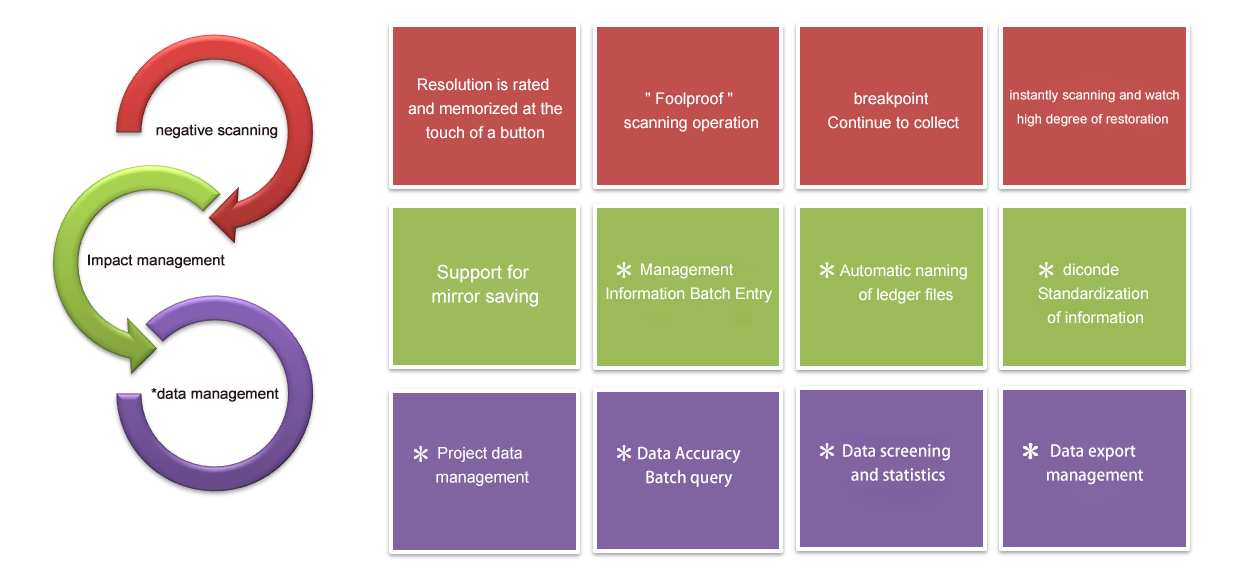

● Data acquisition software (for use with 6th generation industrial film scanners)

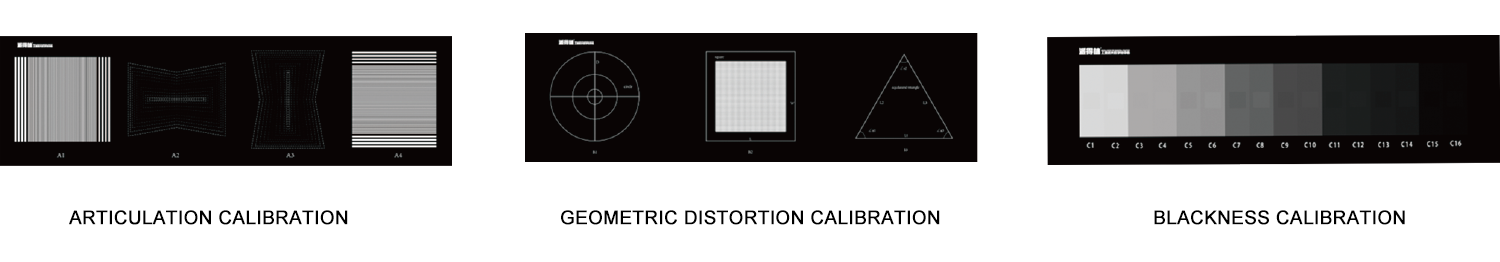

● Equipment calibration samples are provided

For more product details, please go to the download section：https://paidelin.com/index/page/supportlist.html?id=31&pid=58
